Action: Extract zip file

Extract zip file action allows extract files from the archive and save those files to the specified library/folder.

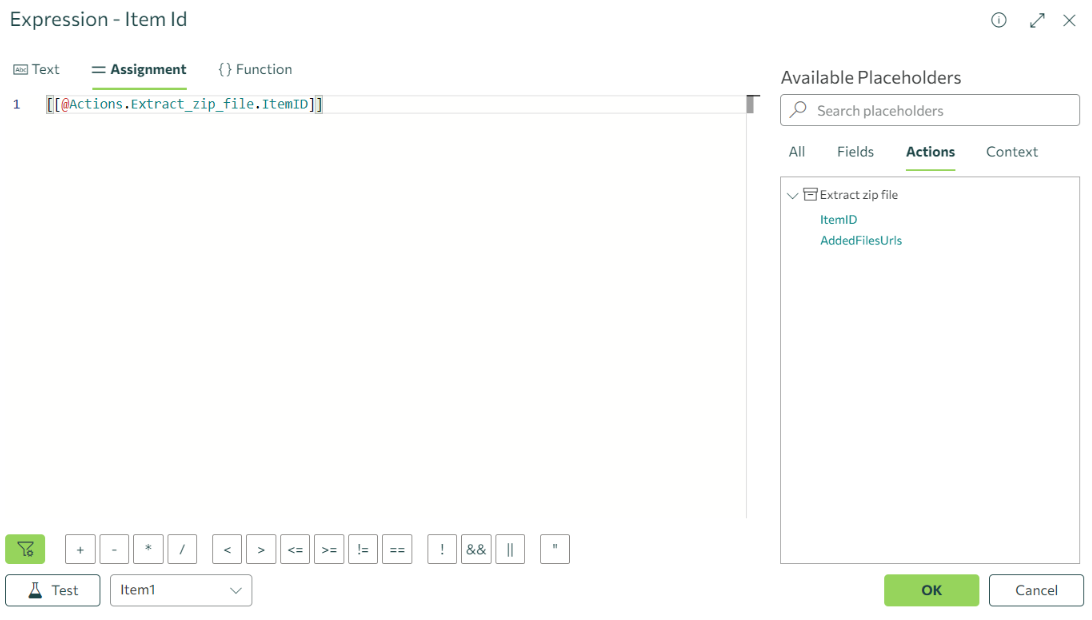

Example of the action configuration on the current site

For more information about Action Builder read Action Builder introduction article.

To configure the action the additional properties should be specified.

Configuration

Property	Required	Type	Description
Source library	yes	Choice	Select the source library where archive is located.
Item Id	yes	String	Specify the ID of the archive file or expression to be evaluated as ID.
Target library	no	Choice	Specify a target library where unarchived files will be stored.
Folder	no	String	Library relative URL to the target folder. If you want to store unarchive files in a new folder you can specify it in this property.
Overwrite	no	Choice	- Yes - It will overwrite the file if the file with the same name already exists. - No - It will through an error if the file with the same name already exist. - Enter custom value - Expression based value (the result should return true of false)

Availability

Modern Forms	List Actions	Scheduled/Triggered Actions
-	-	✓*

Output

Output Parameter	Type	Description
ItemID	String	Returns the Id of the source archive.
AddedFilesUrls	String	Returns server relative path/s to the unarchives files. Starts with '/'
