Action: Insert image to PDF

Action: Insert image to PDF

Insert image to PDF action allows you to insert image to your PDF file. Supported .PNG files.

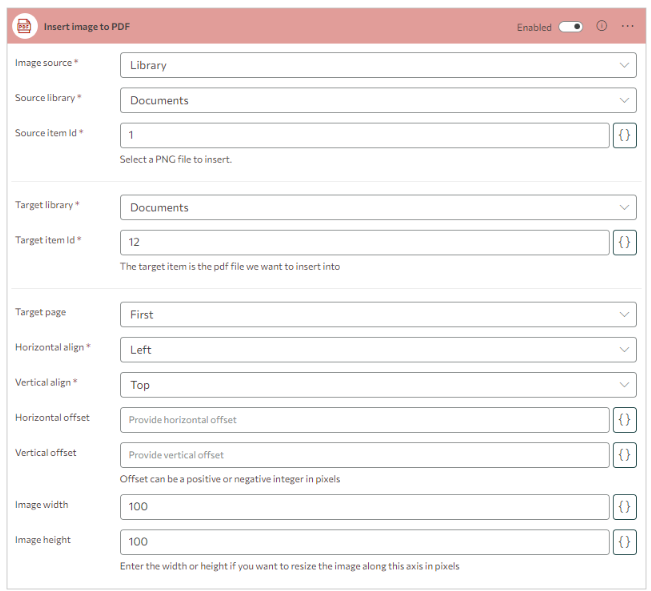

Example of Insert image to PDF action configuration on the current site


For more information about Action Builder read Action Builder introduction article.

To configure the action Insert image to PDF additional properties should be specified:


Configuration

Property

Required

Type

Description

Image source

yes

Choice

Select image source: Base64 or Library

Image Base64

yes

String

Insert Base64 string

Source Library

yes

Choice

A library where image is located. It is possible to select from the current site.

Source Item Id

yes

Integer

The source item is the image we want to insert

Target Library

yes

Choice

A library where pdf file we want to insert into.

Target item Id

yes

Integer

The target item is the pdf file we want to insert into

Target page

yes

Choice

Specify the page we want to insert image to:

·       All

·       First

·       Last

·       Custom

Page number

no

Integer

Specify the existing page number. By default page number 1 is used

Horizontal align

yes

Choice

Select horizontal alignment where to insert image to:

·       Left

·       Middle

·       Right

Vertical align

yes

Choice

Select vertical alignment where to insert image to:

·       Top

·       Middle

·       Bottom

Horizontal offset

no

String

Specify horizontal offset of the image. Can be positive or negative integer in pixels

Vertical offset

no

String

Specify vertical offset of the image. Can be positive or negative integer in pixels

Image width

no

String

Specify the width of the inserted image

Image height

no

String

Specify the height of the inserted image



Availability

Modern Forms

List Actions

Scheduled/Triggered Actions

-

-

✓

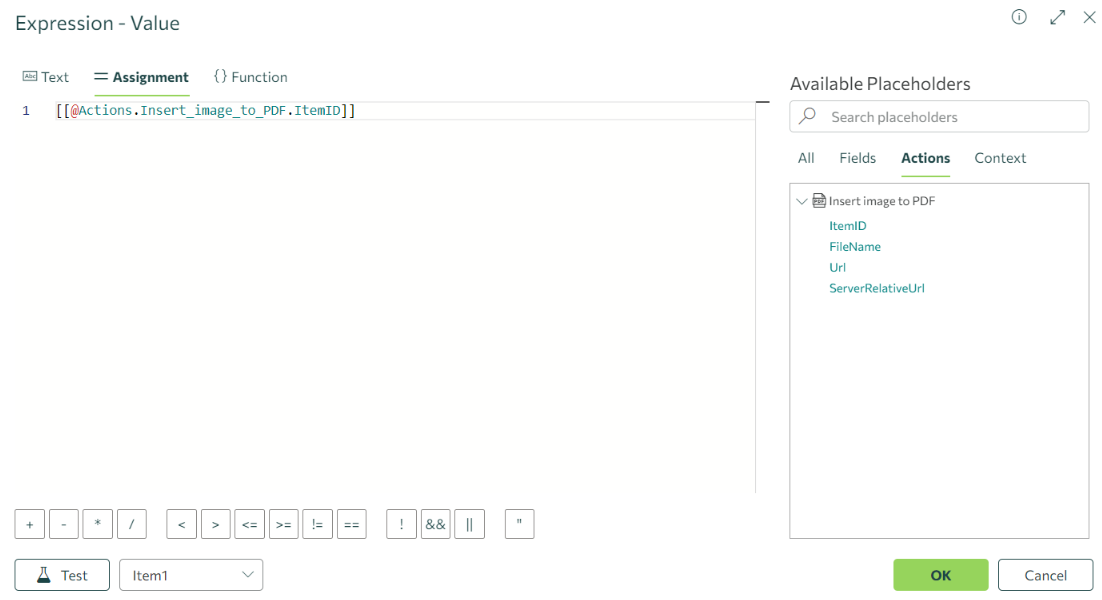

Output

Output Parameter

Type

Description

ItemID

Number

Returns the Id of the document in a library as output parameter and can be used in subsequent actions.

FileName

String

Returns the file name of document

Url

String

Absolute Url to the document in a library. Starts with 'https://'

ServerRelativeUrl

String

Server relative path to the document in a library. Starts with '/'
