Action: Open form

Open form action allows opening the New, Edit or Display form dynamically in a panel or a new window.

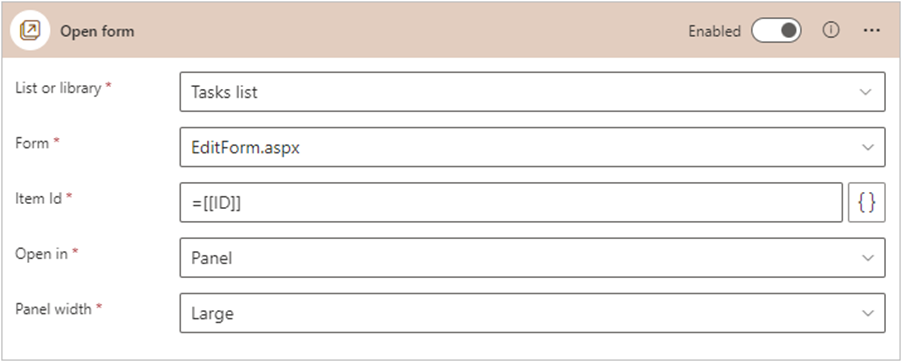

Example of Open form action configuration

For more information about Action Builder read Action Builder introduction article.

When action type Open form is selected, the following additional properties should be specified:

Configuration

*Property*	*Required*	*Type*	*Description*
List or library	yes	Choice	The list or library where the form is located. It is possible to select the list or library from current site.
Form	yes	Choice	Drop-down list with form types: New, Edit or Display.* * if Library is selected in the List field, only the Edit and Display options are available.
List Item Id	yes	Integer	ID or expression to be evaluated as ID of an item if a Display or Edit form is selected.
Open In	yes	Choice	Provides options for choosing how a form should be opened. There are two options available: Panel: form will open in a panel. If the option is chosen, the user has to specify the panel width. New window.
Panel width	yes	Choice	Drop down list shows all possible panel size you can choose: Form default, Small, Medium, Large, Full Screen, Custom.
Custom width	yes	Number	Specify custom panel width in % (Value must be between 20 and 100)
Query String	no	String	Allows adding further text to query string (the question mark "?" or ampersand "&" does not need to be typed at the beginning).

*Modern Forms*	*List Actions*	*Scheduled/Triggered Actions*
✓	✓	-

Output for this action is not available
